High-Performance Floor Panel Systems
Strong, insulated, and designed for faster, smarter construction.
Floor Panels Built for Strength & Efficiency
Our floor panel system is designed to provide a strong, insulated, and efficient foundation for elevated and multi-storey homes. Using Spandek® Zincalume® cladded panels with lengths up to 10.0 metres, the system offers both durability and design flexibility.
Finished with yellow tongue flooring, the panels deliver a stable base that reduces the need for excessive stumps or concrete, making them lighter on the land and easier to install.
With an insulation rating of R 4.3 (U-value 0.17 bare), performance can be further enhanced with additional coverings, ensuring year-round comfort and energy efficiency.
Key Features of Our Floor Panels
Ease & speed of build
Ready to lay with no on-site cutting
Environmentally friendly
Elevated houses leave a smaller footprint
Minimal site waste
Dramatically reduced compared to conventional methods
Versatile
Suitable for all sub-frame types
Energy efficient
Completes the system for sustainable housing
Weather resistant
Durable in all conditions
Fire safe
Added protection and peace of mind
Applications
Multi-storey buildings
Perfectly suited for use in elevated and two-storey homes.
Flexible ceiling finishes
Compatible with standard ceiling finishes for a seamless interior look.
Integrated utilities
Electrical wiring can be run neatly along the valleys of the Spandek®.
Fixing method

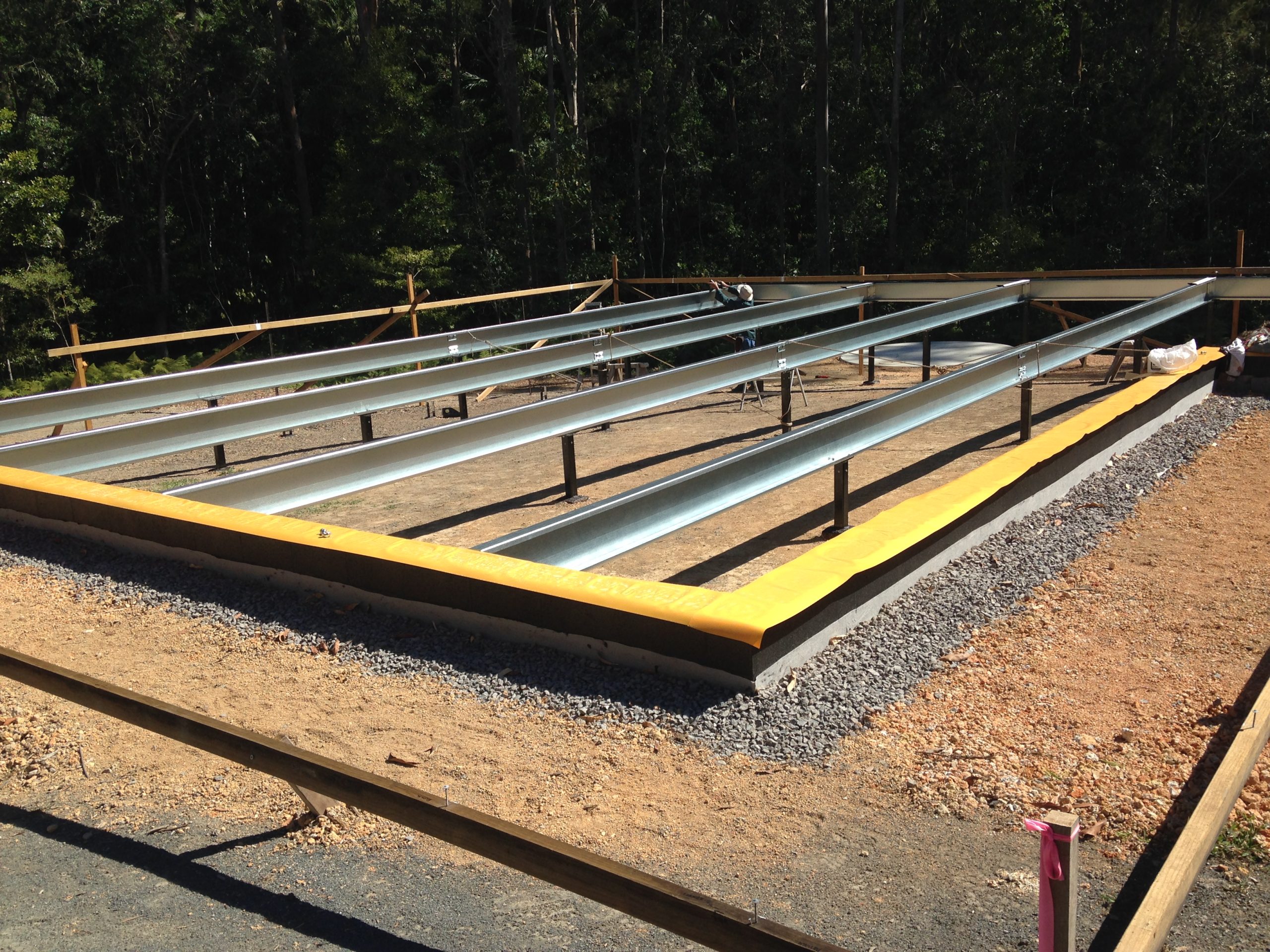

Our floor panel system uses the same click-lock installation as our roofing panels, making it fast and reliable. The panels are secured to the C channel bearers by screwing through the valleys, ensuring a strong and stable base. On top, yellow tongue panels are laid across the corrugations and fixed with high-performance polyurethane glue.
This creates a solid flooring surface, ready for your choice of additional coverings such as tiles, timber, or carpet. These coverings not only provide a modern, stylish finish but also increase the R-value, boosting the overall energy efficiency of your home. R6.0 is achieved with yellow tongue flooring.
Why Choose Our Floor Panels?
- Fast & Easy Installation – click-lock system, no on-site cutting required
- Eco-Friendly – elevated design leaves a smaller environmental footprint
- Less Waste – minimal site mess compared to conventional methods
- Energy Efficient – R-value up to 4.3 bare, increased further with coverings
- Versatile – suitable for multi-storey builds and all sub-frame types
- Flexible Finishes – supports standard ceilings, hanging ceilings, and modern floor coverings
- Weather Resistant & Fire Safe – built to perform in tough conditions
- Faster Build Time – no concrete curing delays, lighter yet strong system
Frequently Asked Questions
Our floor panels use Spandek® Zincalume® cladded panels with a structural polyurethane core, finished with yellow tongue flooring. This creates a lightweight, durable, and insulated flooring system.
The system uses a click-lock installation, the same as our roof panels. Panels are screwed into C channel bearers, with yellow tongue flooring glued and fixed on top. Additional coverings like tiles, timber, or carpet can then be added for both style and increased insulation.
The panels achieve an insulation value of R 4.3 (U-value 0.17 bare), which can be further improved with floor coverings. This helps maintain year-round comfort and lowers energy costs.
Yes. The system is ideal for elevated and multi-storey homes, allowing for standard or suspended ceilings. Utilities such as electrical wiring can be run neatly along the valleys of the Spandek®.
They offer faster build times, lighter construction, reduced site waste, and reliable fire and weather resistance.
